Primary Lithium
Primary Lithium Cells are available as both cylindrical and button cells. The cells supply power with high energy density, safety, and durability.
The cylindrical cells are equipped with a PTC (Positive Temperature Coefficient) to protect the cells and the user against safety issues and overcurrent faults, such as external short circuit.
Safe and reliable
Primary lithium cells deliver a stable, reliable voltage and high energy density. To prevent external short circuiting and internal pressure the cylindrical cells are equipped with a PTC (Positive Temperature Coefficient) and a positive cap with safety vents.
Powerful and long-lasting
Lithium batteries have a long service life, low self-discharge and are suitable for applications that requires high power.
Adaptable

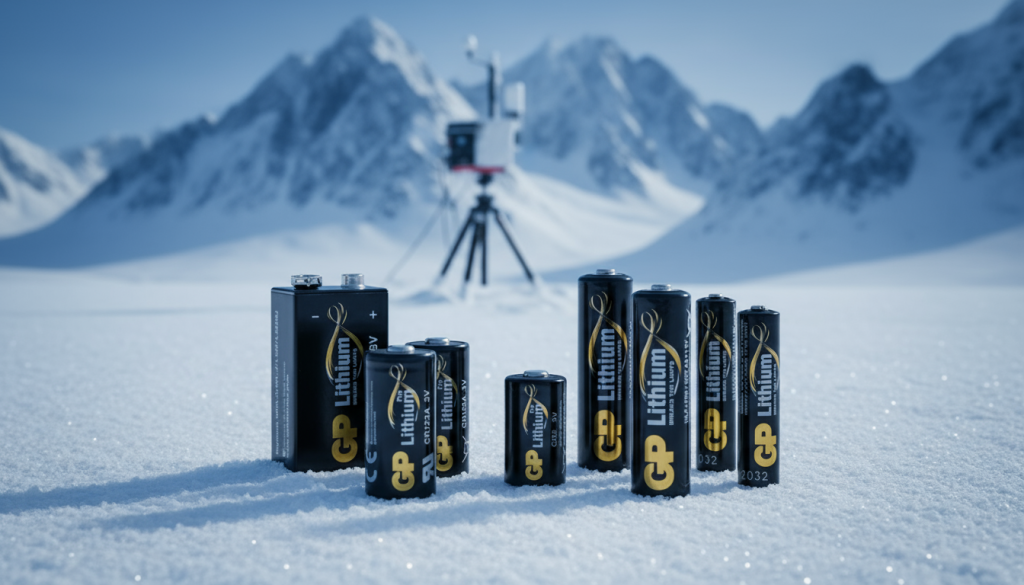

The cells can be used in environments with high variation in temperature. From -40°C to +60°C for Cylindrical cells and -20°C to +65°C for button cells.
Primary Lithium batteries from GP

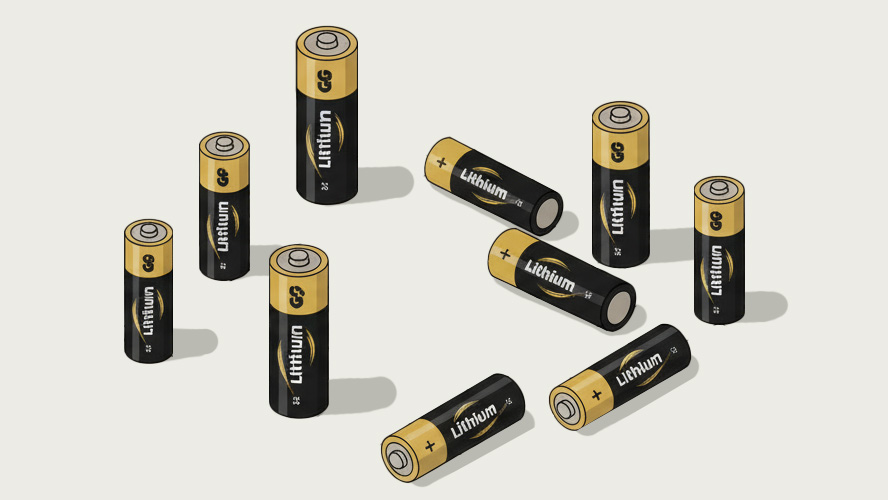

Cylindrical primary Lithium cells from GP offer high energy density, durability and a strong voltage. With a low internal resistance, leak proof crimping technique, and a wide range of operation temperatures these cells are commonly used in applications such as IoT, home security system, and smoke detectors.

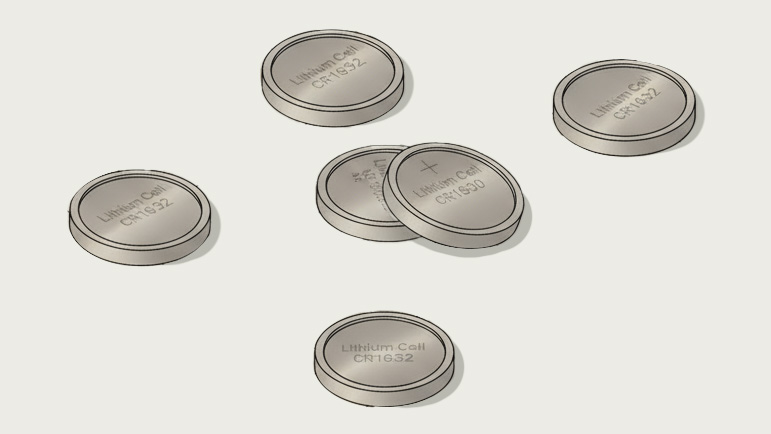

The primary lithium coin cells from GP possess high energy density and durability, especially suitable for compact devices with extra low background drains.
Application areas
home security
cameras
Product range
| Model | Dimension (mm) | Voltage (V) | ||
|---|---|---|---|---|
| CR14250 | Ø 14.5 | H 25.0 | 3.0 | |
| CR2 | Ø 15.6 | H 27.0 | 3.0 | |
| CR123A | Ø 16.8 | H 34.5 | 3.0 | |
| CR2/3A | Ø 16.8 | H 34.0 | 3.0 | |
| CR17450 | Ø 17 | H 45.0 | 3.0 | |
| CR-P2 | L 34.8 | W 19.5 | H 35.8 | 6.0 |
| 2CR5 | L 34.8 | W 17.0 | H 45.0 | 6.0 |
| CR-V9 | L 34.8 | W 17.5 | H 48.5 | 9.0 |
| 15LF | Ø 14.5 | H 50.0 | 1.5 | |
| 24LF | Ø 10.5 | H 44.5 | 1.5 | |

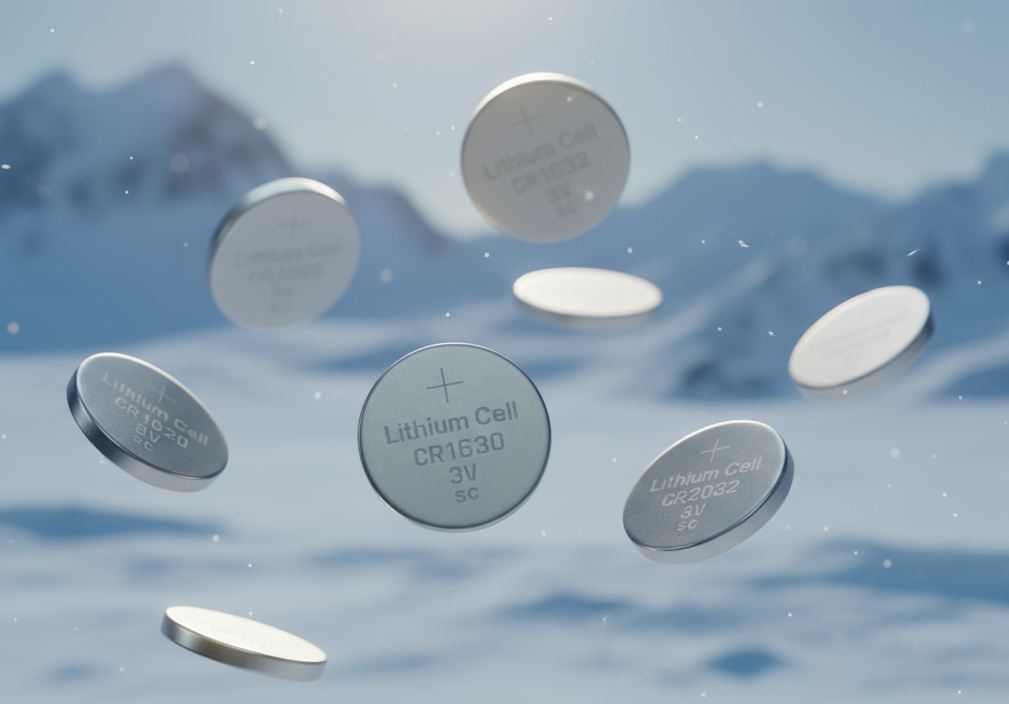

Button Cells
Application areas
Calculators
Watches
remote controls
Product range
| Model | Dimension (mm) | Voltage (V) | Nominal Capacity (mAh) | |
|---|---|---|---|---|
| CR1216 | Ø 12.5 | H 1.6 | 3.0 | 25.0 |
| CR1220 | Ø 12.5 | H 2.0 | 3.0 | 36.0 |
| CR1616 | Ø 12.5 | H 2.0 | 3.0 | 36.0 |
| CR1620 | Ø 16.0 | H 1.6 | 3.0 | 55.0 |
| CR1632 | Ø 16.0 | H 3.2 | 3.0 | 140.0 |
| CR2016 | Ø 20.0 | H 1.6 | 3.0 | 90.0 |
| CR2025 | Ø 20.0 | H 2.5 | 3.0 | 160.0 |
| CR2032 | Ø 20.0 | H 3.2 | 3.0 | 220.0 |
| CR2430 | Ø 24.5 | H 3.0 | 3.0 | 300.0 |
| CR2450 | Ø 24.5 | H 5.0 | 3.0 | 600.0 |
